All of our information is sourced from manufacturer data.

Fiber-Classic/Smooth-Star Door

Harvey Building Products

Fiber-Classic/Smooth-Star Door

Fiber-Classic & Smooth-Star

One-Click Request

Acelab will find & contact reps to deliver answers to your inbox.

Overview

Swinging Door Swinging Door

Fiberglass Fiberglass

Imitation Wood (Laminated or Textured), Laminated or Textured, Painted, Unfinished Imitation Wood (Laminated or Textured), Laminated or Textured, Painted, Unfinished

Exterior Door Exterior Door

Design Options

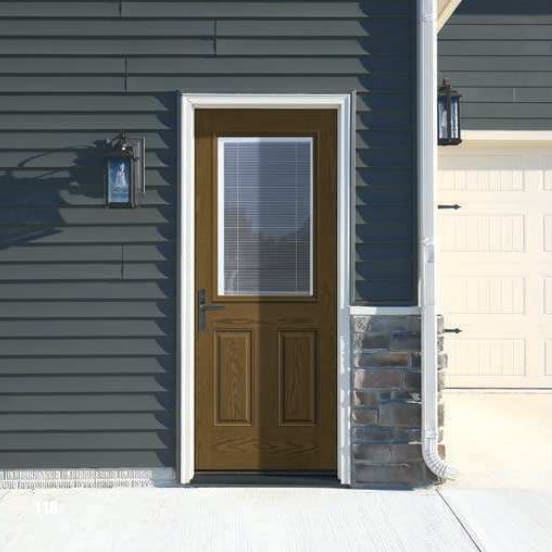

Product Description

From curb appeal to convenience, our Fiber-Classic collections feature wood grains to suit any style. Choose from two wood-grained collections, in a wide variety of door sizes and glass designs, or the perfect fiberglass door to fit a variety of home styles. Smooth-Star is the answer if the best look for your home is a smooth, paintable surface. The more attractive and durable alternative to steel, Smooth-Star fiberglass doors are ready-to-paint (no need to prime!) with crisp, clean contours.

Durability

With very little maintenance, a fiberglass door can bring a home years of durability. Unlike wood, fiberglass will not warp or rot. And, unlike steel, it will not dent or rust.

HD Panel Embossment

Enhance your architectural details with high-definition panel embossments, standard on all doors and sidelites.

On-Trend Surfaces

Available in a variety of textures, including grain choices with the look of real wood or a smooth, paintable alternative to steel.

R-Values

Built with a polyurethane foam core that offers up to four times the insulating R-Value of wood*, Therma-Tru fiberglass doors insulate against cold and heat for exceptional energy efficiency.

Security

An enhanced lock block combined with a 1-1⁄4" engineered lumber lock stile increases rigidity and stability.

Weather Resistance

Composite rails protect the door at the top and bottom edges to help block moisture that can wick into doors.

Door Frame

Width

Min: 2' 1-5/8" Max: 3' 7-5/8"

Height

Standard Sizes: 6' 7-1/2", 6' 10", 7' 2", 8' 2"

Thickness

Standard Sizes: 4-9/16"

Leaf

Width

Standard Sizes: 2' 0", 2' 4", 2' 6", 2' 8", 2' 10", 3' 0", 3' 6"

Height

Standard Sizes: 6' 6", 6' 8", 7' 0", 8' 0"

Thickness

Grid Profiles

GBG (Grilles Between Glass)

GBG (Grilles Between Glass)

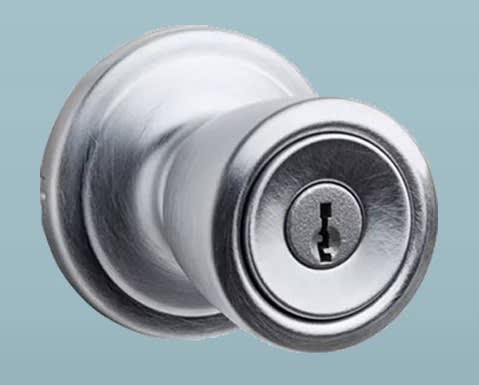

Door Hardware

Abbey

Abbey



Frame Finish

Acorn

Acorn

Imitation Wood (Laminated or Textured)

Leaf Design Style

2010XK-SDL

2010XK-SDL



Leaf Finish

Acorn

Acorn

Imitation Wood (Laminated or Textured)

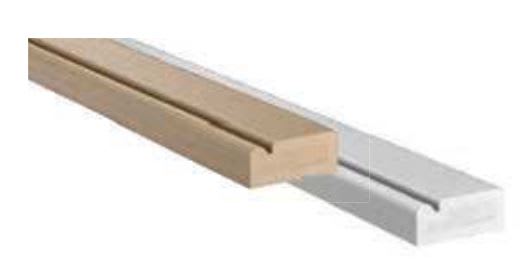

Pannings, Casings or Trims

1-5/8" Florida Brickmould WM176

1-5/8" Florida Brickmould WM176

Exterior

Privacy Glass Option

Avonlea - Decorative Glass

Avonlea - Decorative Glass



Performance Data

U-Factor

The U-value for this door, assuming options are selected that have no glass. If the door comes with glass, see the glazing table for U-values for different glazing options.

Units: Btu / h * ft^2 * °F

0.14

Certifications

NFRC Label

Available

OITC

Rating (20-25)

OITC

Rating (30-35)

STC

Rating (30-35)

STC

Rating (25-30)

STC

Rating (35-40)

Door Glazing

The tables below show the glazing options available for each door product displayed on this page.

Harvey Building Products, Fiber-Classic/Smooth-Star Door Fiber-Classic & Smooth-Star

Option Features Glass Thickness Visible Transmittance (VT)
Clear/air/clear Double Pane 0.5 0.08
E272 / Air / Clear Double Pane, Low-E Coating 0.5625 0.28
E272/air/clear/air/clear Low-E Coating, Triple Pane 1 0.13
E366/air/clear Double Pane, Low-E Coating 0.5 0.18

Harvey Building Products

1400 Main St. Waltham, Massachusetts, USA 02451-9180

(800) 598-5400

https://www.harveywindows.com

Learn More
