All of our information is sourced from manufacturer data.
Andersen Windows, Inc.
Liftslide Door
Big Doors
One-Click Request
Overview
Multi-Slide Door
Aluminum
Anodized, Painted
Exterior Door
Design Options
Product Description
Door Frame
Width
Max: 60' 0"
Height
Thickness
Leaf
Width
Max: 14' 0"
Height
Min: 3' 0" Max: 16' 0"
Thickness
Standard Sizes: 3-1/2"
Grid Profiles

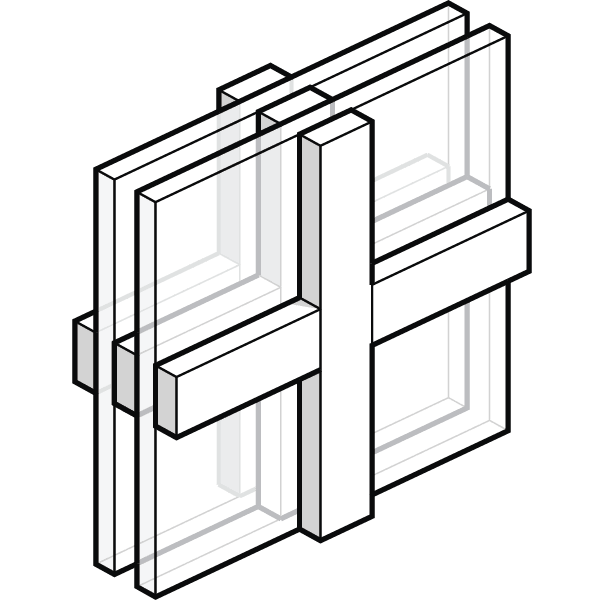

SDL w/Spacer Bars (Simulated Divided Lite with Spacer Bars)
Frame Finish
Abalone
Painted (AAMA 2605)
Leaf Finish
Abalone
Painted (AAMA 2605)
Performance Data
Air Leakage
Units: ft^3 / minute / ft^2 at 1.57 psf
0.09
Certifications
AAMA
Gold
NFRC Label
Available
Door Glazing
The tables below show the glazing options available for each door product displayed on this page.
Andersen Windows, Inc., Liftslide Door Big Doors
| Option | Features | Glass Thickness | Solar Heat Gain Coefficient | U Value |
|---|---|---|---|---|
| LOW-E SMARTSUN | Argon, Low-E Coating, Triple Pane | 1.3125 | 0.16 | 0.3 |
| LOW-E SMARTSUN HEATLOCK TECHNOLOGY | Argon, Low-E Coating, Triple Pane | 1.3125 | 0.16 | 0.29 |
| LOW-E SMARTSUN HEATLOCK® TECHNOLOGY | Argon, Double Pane, Low-E Coating | 1 | 0.2 | 0.35 |
| LOW-E SMARTSUN™ | Argon, Double Pane, Low-E Coating | 1 | 0.2 | 0.38 |
Andersen Windows, Inc.
100 Fourth Ave. N. P. O. Box 12 Bayport, Minnesota, USA 55003-1096
(800) 299-9029
